Wearable Solutions

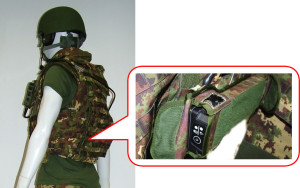

Individual Power System



Rechargeable Li-Ion Battery

Main features:
  • Nominal Voltage:  10,8 Vdc
  • Nominal Capacity:  6,8 Ah at 20°C
  • V cut off:  7.5 V (at 1.4 A, 20°C)
  • End charge voltage:  12.6 +/– 0.05 V
  • Charge Temperature: -20°C / + 55°C
  • Operating Temp.:  -20°C / +55°C
  • Storage Temp. :  -40°C / +60°C
  • Weight:  640 g
  • Dimensions:  205 x 74 x 29 mm






SDA (Power System Distribution)

Function:

The SDA unit distributes the energy of the battery to the users of the system through independent power lines.

Main Characteristics:
  • Operating Temp.:  -20°C / +55°C
  • Storage Temp. :  -40°C / +60°C
  • Weight :  200 g
  • Dimensions:   105 x 70 x 35 mm

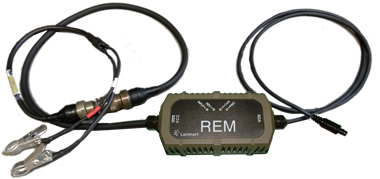

REM (Emergency Recharger)

Function:

The REM is designed forward by to recharge the battery in “tactical” environments.

Main Characteristics:
  • Operating Temp.:  -20°C / +55°C
  • Storage Temp. :  -40°C / +60°C
  • Weight:  380 g
  • Dimensions:  125 x 67 x 30 mm
