Wearable Solutions

Soluzioni Individuali

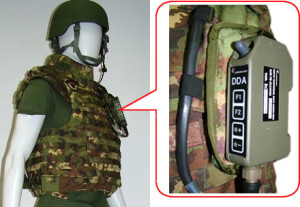

LRT-440 System



The LRT-440  System includes the following wearable units:

  • Wearable PC (processor unit)
  • Display 3.5″ or 6.4″ (optional)
  • DDA unit (Digital Data Access)
  • Headset (with microphone)

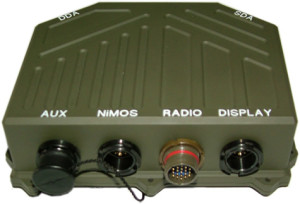

Wearable PC (processor unit)



WPC_004 WPC_002


Main Characteristics
  • CPU: OMAP 3735 1GH
  • RAM: 512 MB
  • Flash: 512 MB
  • In / Out: Ethernet, USB, RS-232, Bluetooth, Audio AC97
  • Video output per HMD
  • Operating Temp.: -25°C / +55°C
  • Storage Temp.: -40°C / +70°C
  • Weight: 0,5 Kg
  • Dimensions: 135 x 102 x 38 mm

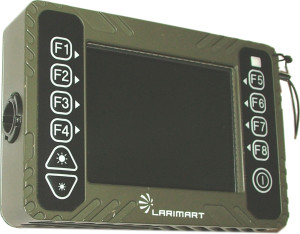

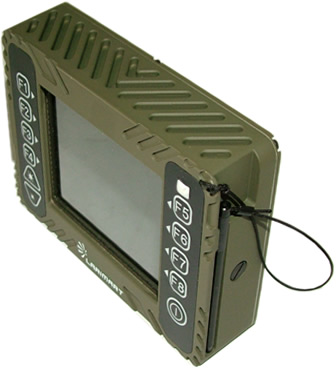

Display 3.5″



LRT-440_04



Main Characteristics
  • Display 3,5″ Touch-screen
  • N° 8 Function Keys
  • Compass 3 axes
  • Operating Temp.: -25°C / +55°C
  • Storage Temp.:  -40°C / +70°C
  • Weight: 0,4 Kg
  • Dimensions: 126 x 85 x 28 mm

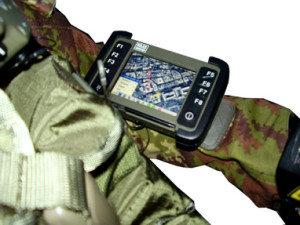

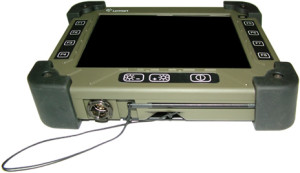

Display 6.4″





 Display_6.4_03





Main Characteristics
  • Display 6,4″ Touch-screen
  • N° 8 Function Keys
  • Brightness Sensor
  • Operating Temp.: -25°C / +55°C
  • Storage Temp.:  -40°C / +70°C
  • Weight: 1 Kg
  • Dimensions: 190 x 160 x 40 mm

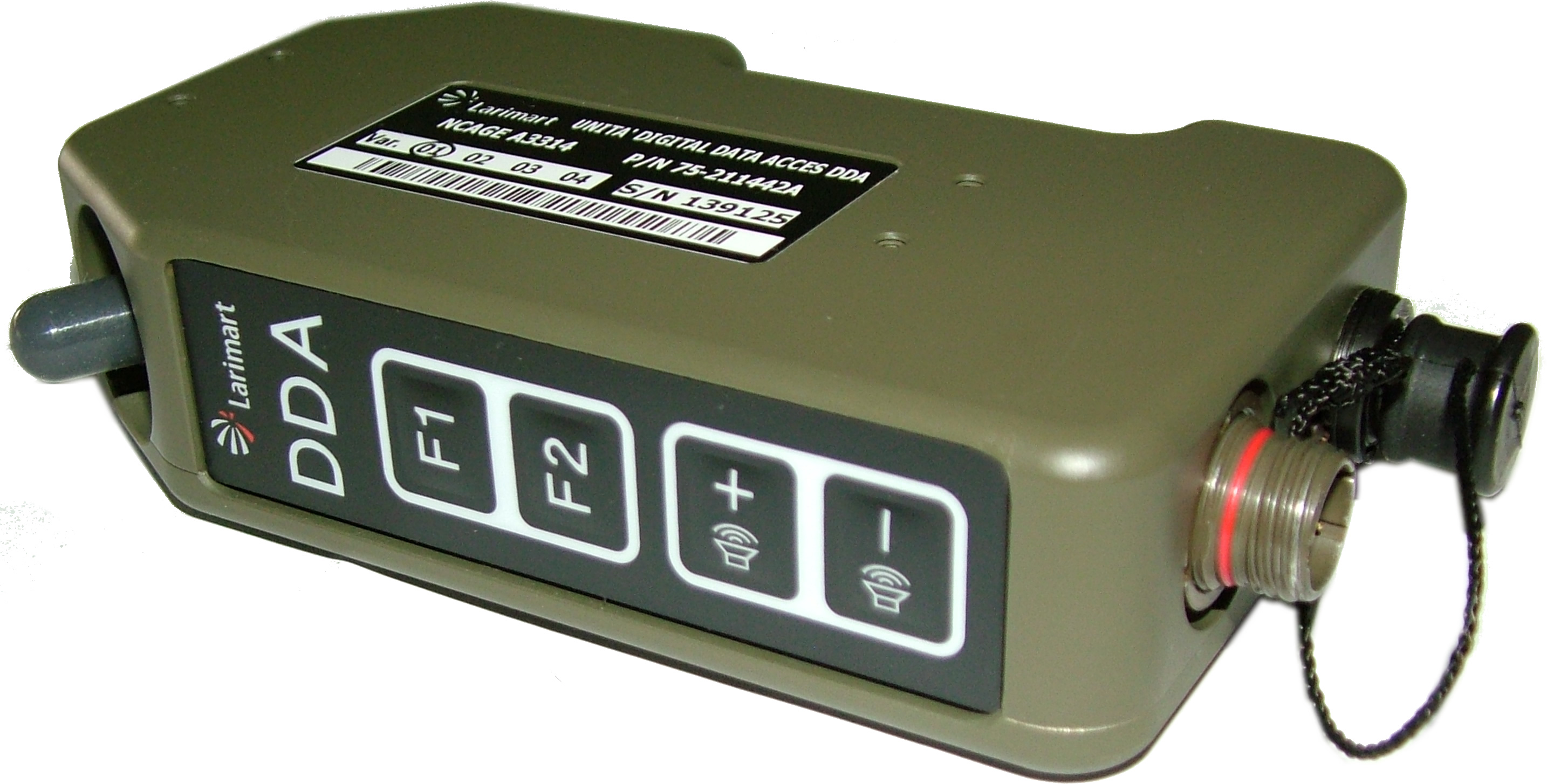

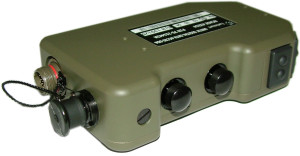

DDA (Digital Data Access)



DDA_05



Function:
Control interface for the “SW C2” devices.

Main Characteristics:
  • Operating Temp.: -25°C – +55°C
  • Storage Temp.: -40°C – +70°C
  • Weight: 0,3 Kg
  • Dimensions: 120 x 76 x 29 mm


Headset (with microphone)



LRT-440_03


Data Terminal Hand Held (Android)



WPC evolution
